Image Sensor | 1280 pixels(H)x 800 pixels(V) CMOS |

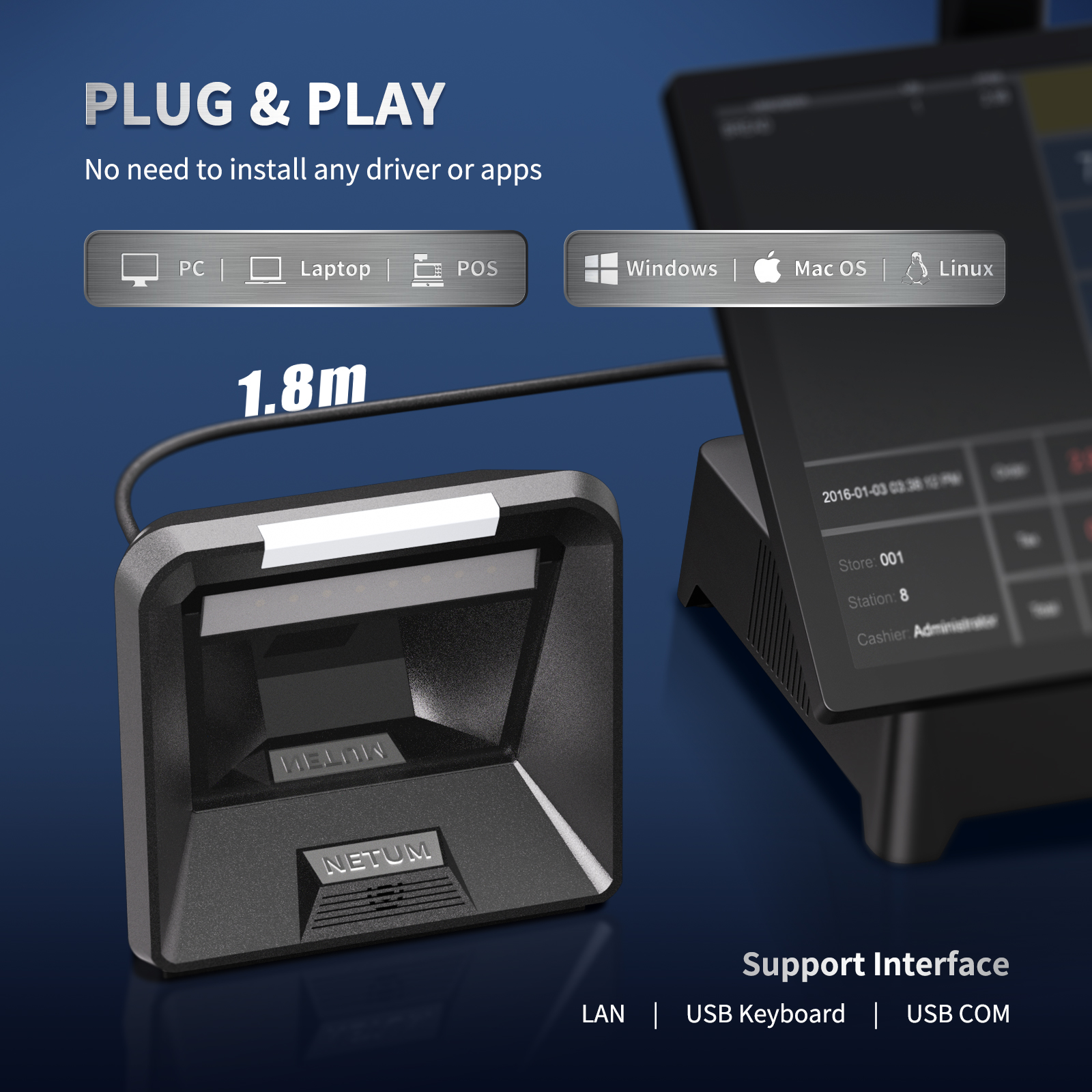

Port/Interface | USB (standard)/RS232/Virtual COM Port |

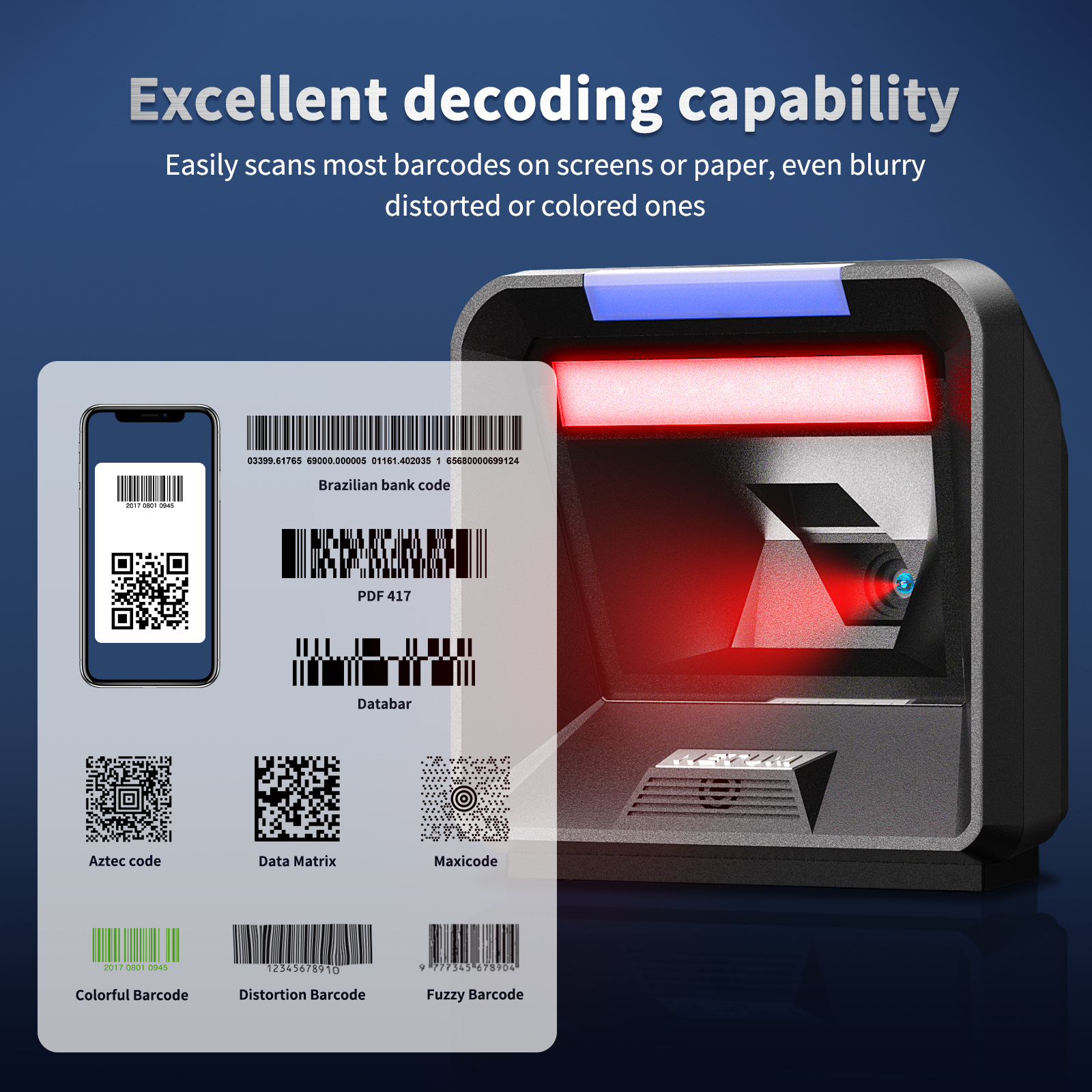

Supported Symbologies | PDF417,QRcode ,Date Matrix , Maxicode, Aztec Code , HanxinCode,MicroQR,Code39, FullASCⅡ,Codebar, Industrial2of5, Interleave2of5, Matrix2of5, Code93, Code128, Code32, EAN 128, MSI, EAN 8&13, UPCA&E, Plessey, |
Presicion | 1D≥3mil,2D≥5mil |
Depth of scan field | 0-270mm |
Illuminant | 617nm LED |
Decode speed | 1700times/ second |
Light intensity | 0- 86000Lux |
Decode Error Rate | less than 1/8 million |
Print Contrast Signal | ≥25% |
Scan Angle | Yaw(Skew) 51° pitch 34.5° |
Voltage | 5V |
Current | Operation 780mA, Idle 255mA |

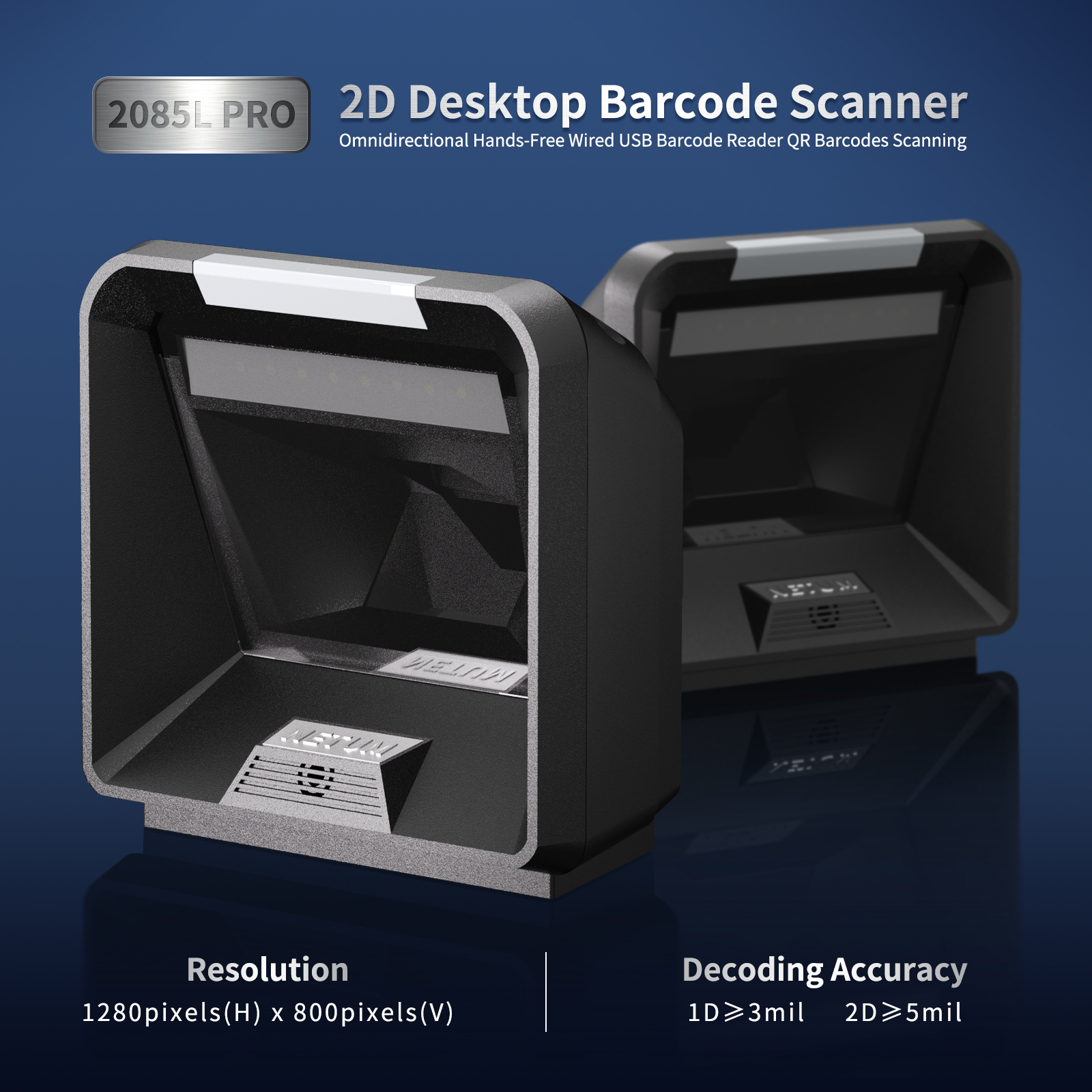

NT-2085L 2D Image Hands-Free Barcode Scanner Flatbed Desktop Bar code Reader
The NT-2085L provides great features with enhanced performance.
